To create a cleaner production environment, YIZUMI will introduce an integrated feeding system. A turnkey solution including raw materials, molds, equipment and processes is ready for you.
Both the fixed and movable platen design adopts uniform-stress clamping technology, less platen deformation. Uniform-distribution of clamping force between mold and platen can prevent flash, parts missing and other undesirable defects, thus reducing the mold clamping force and extend the useful life of platens.
Platen is arranged with T-slot and mold mounting holes horizontally, while with mold mounting holes vertically, which can not only facilitate assembling and disassembling the mold, but also improve the overall rigidity of platen.
The power system is configured with sufficient power, and has strong overload capacity. Taking the 120T model as an example, during the full-speed and full-pressure test, the limit testing for 5 min can be achieved without overload alarm. The system response speed is further improved. Taking the 120T model as an example, its response time is about 40 ms.

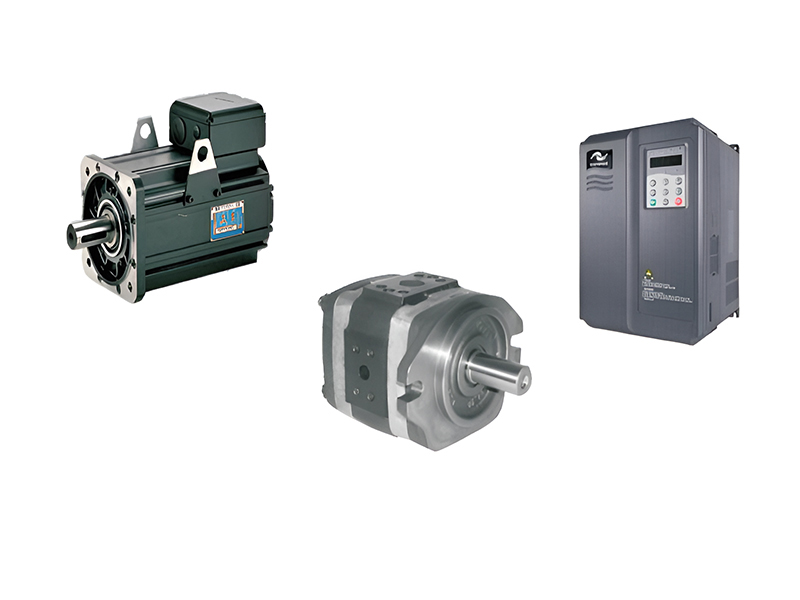

The 3rd generation energy-saving servo system is adopted, which has small moment of inertia, no bottom flow and lower energy consumption. The whole oil circuit is optimized in multiple ways, realizing the reduction in movement resistance and pressure flow loss during machine operation, to ensure lower power consumption of the complete machine.

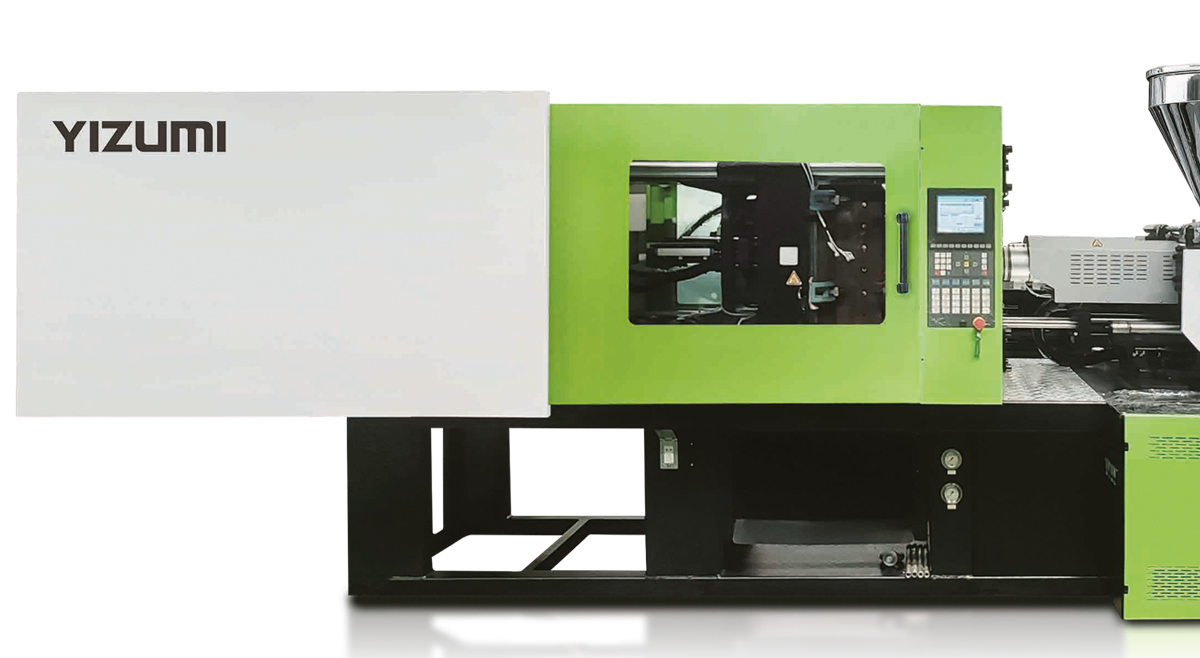

U Series injection molding machine provides increased rigidity, reduced resistance and improved injection stability with homogeneous tension clamping technology and optimized injection unit. Features such as user-friendly design, horizontal T-slot and mold mounting holes in the platen, energy-saving servo technology contribute to efficient and precise machine operation with lower energy consumption.
