C Series High-end Multi-Component Injection Molding Machine

Yizumi C Series multi-component injection molding machine is built to meet the needs of higher quality of life and increasing demand for personalization. Mainly brought from European R&D center, C series provides stability and customization with its advanced technology.

Stability

With the use of balanced force clamping (BFC) technology, magnetically levitated turntable (MLT) technology, digital closed-loop positioning control (DCPC) technology, super long sliding shoes and smart mold-open deceleration technology, movements of the clamping unit and rotary unit are stable and reliable. The mold-open position repeatability is up to ±0.3mm.

Customization

Standardized and modular design is applied to the whole machine, including the injection unit, power unit and plasticizing unit. The integration with the free programming function in software makes customization more mature.

More Durable Anti-Wear Turntable Design

The combination of double-row needle bearings that have high load capacity and magnetically levitated turntable technology makes the turntable more durable and reliable.

C Series

Clamping Unit

C Series

Injection Unit

C Series

Control System

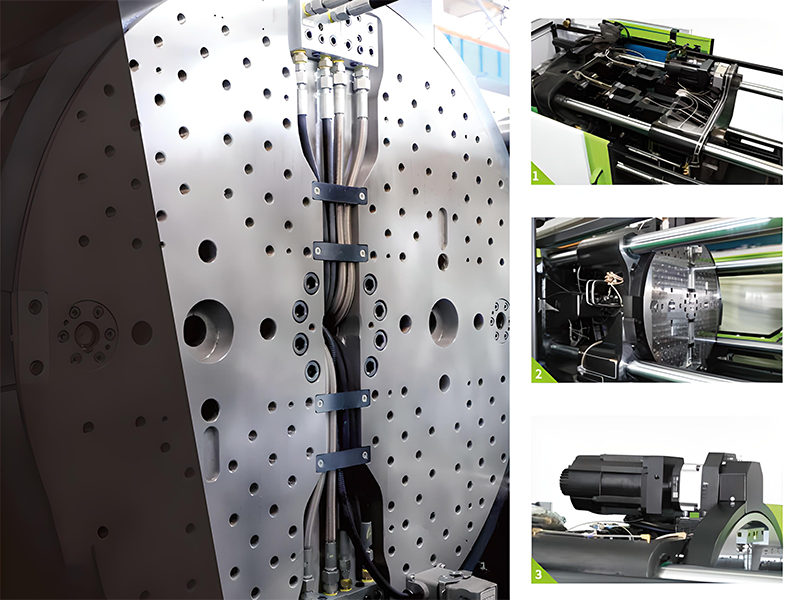

C Series Clamping Unit

Clamping Unit

  • The BFC technology delivers high platen rigidity, long mold life. Easily-adjustable processes and minimized possible flashes and better ensures molding accuracy and stability.
  • The turntable is designed with magnetic levitation (for 260T machine and smaller models) to reduce frictional loss, increase the movement reliability and prolong the life of turntable.
  • The DCPC technology enables the turntable to rotate smoothly without impact and position accurately.
  • The sliding shoes of movable platen, which are designed based on the needs of guiding and supporting the centre of gravity, can effectively increase the movement steadiness and prolong the mold life.

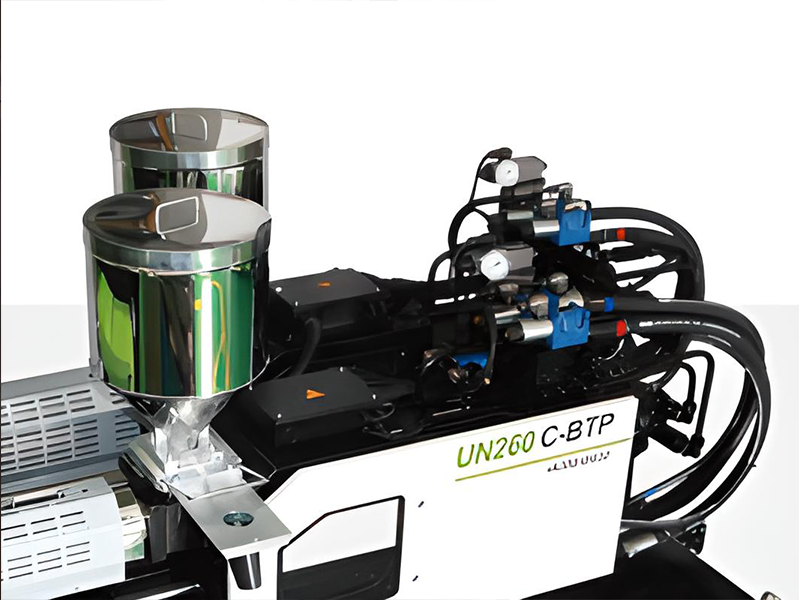

C Series Injection Unit

Injection Unit

  • With the adoption of low-inertia moving parts, the injection movement response is quick and the injection accuracy is further improved.
  • The screw not only ensures efficient plasticizing, but it is also optimally designed for the best mixing effect without material sticking, yellowing and blackening.
  • Customization is available through the flexible combination of injection units according to different processes requirements and flexible software functions.

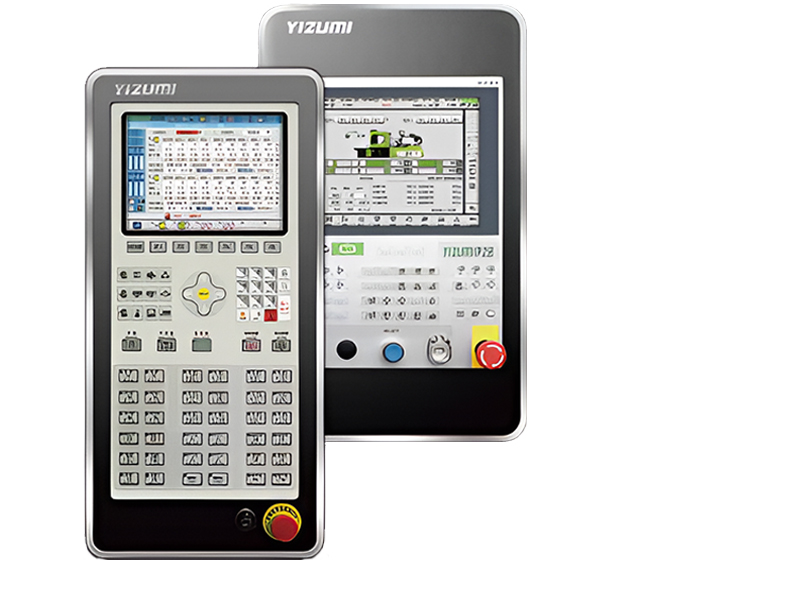

C Series Control System

Control System

  • The powerful and responsive industrial controller for multi-component injection molding machine can accurately and synchronously control several injection units, and exchange data with turntable by synchronous communication in real time to achieve turntable accurate positioning. Humanization design of user interface and button upgrades the comfort and convenience of operation

C Series

Clamping Unit

C Series

Injection Unit

C Series

Control System

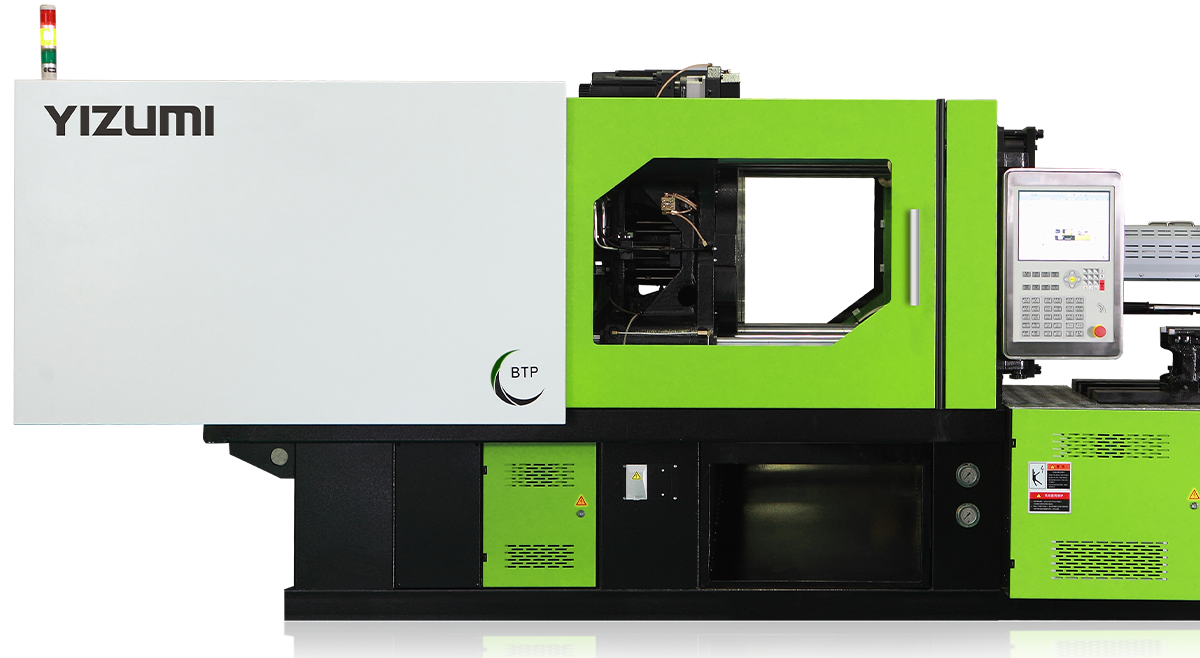

C Series Technical Information

C Series Technical Information

Due to modular design, electrical injection unit can combining with hydraulic machine to build hybrid gasoline-electric dual-color machine, or with all-electric machine to all-electric dual-color machine. By flexible combination method, L-type/V-type electrical injection unit are also available.
